Components

Toast

Transient confirmation and notification messages.

FreePerspective 8.3

Preview

7 of 7 examples · Each preview has its own view and URL. One interactive preview at a time.

Native capture

Notification stack

Notification stack — captured in Ignition Perspective
Native capture

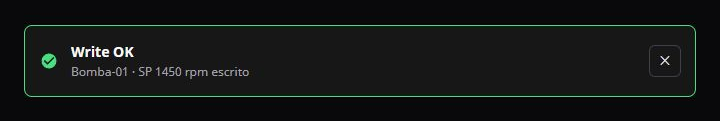

Success

Success — captured in Ignition Perspective
Native capture

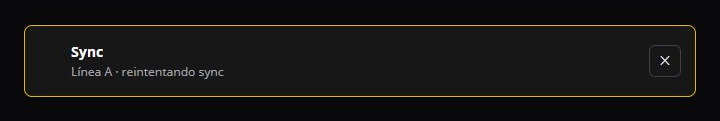

Warning

Warning — captured in Ignition Perspective
Native capture

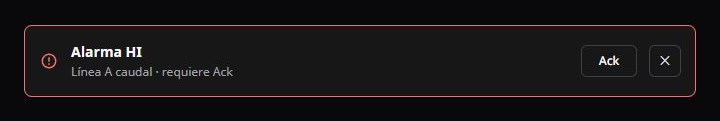

Alarm

Alarm — captured in Ignition Perspective
Native capture

Loading

Loading — captured in Ignition Perspective
Native capture

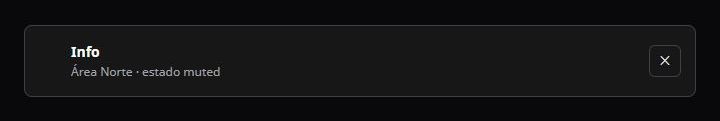

Information

Information — captured in Ignition Perspective
Native capture

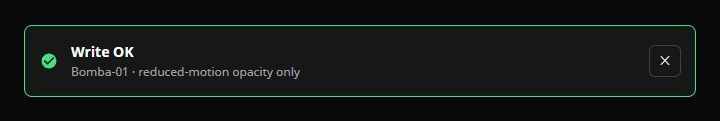

Reduced motion

Reduced motion — captured in Ignition Perspective

Activate Perspective to interact with the native views and demo data. Only visible previews connect; each example can also open independently.

Installation

  1. Download this component’s ZIP. In your development project, choose Designer → File → Import and select it. Preserve the view and style-class paths and review replacement conflicts.
  2. Append stylesheet-snippet.css to Perspective Styles → stylesheet.css. Enable Advanced Stylesheet if needed and preserve your existing CSS.
  3. Add an Embedded View, set its path to Viewcraft/Components/UI/Toast/Toast, and configure its parameters.

Perspective 8.3 · 69 resource files. ZIP structure and source consistency are checked. Manual Designer import acceptance is pending.

Usage

Use the component inside an Embedded View. Replace the sample values with your own data; output and inout parameters expose state back to the host.

Embedded View props
{
  "path": "Viewcraft/Components/UI/Toast/Toast",
  "params": {
    "variant": "info",
    "title": "Info",
    "description": "Área Norte · estado muted",
    "actionLabel": "",
    "showDismiss": true,
    "reducedMotion": false
  },
  "useDefaultViewWidth": false,
  "useDefaultViewHeight": false
}

Parameters

Taken directly from the native view. Types describe the saved defaults; they are not a complete validation schema.

ParameterTypeDirectionDefault
variantstringinput
"info"
titlestringinput
"Info"
descriptionstringinput
"Área Norte · estado muted"
actionLabelstringinput
""
showDismissbooleaninput
true
reducedMotionbooleaninput
false

For agents

Copy this page for the contract, installation steps and complete source. With the Rungsmith MCP, call get_catalog_component with id toast.
